PDFMathTranslate
STDIOPDF scientific paper translation preserving formulas, charts, and formatting with bilingual output
PDF scientific paper translation preserving formulas, charts, and formatting with bilingual output
PDF scientific paper translation and bilingual comparison.
Feel free to provide feedback in GitHub Issues or Telegram Group.
For details on how to contribute, please consult the Contribution Guide.
[!NOTE]
2.0 Moved to a new repository under the organization: PDFMathTranslate/PDFMathTranslate-next
Version 2.0 official release has been published.
-cp (by @reycn)
You can try our application out using either of the following demos:
Note that the computing resources of the demo are limited, so please avoid abusing them.
For different use cases, we provide distinct methods to use our program:
Python installed (3.10 <= version <= 3.12)
Install our package:
pip install uv uv tool install --python 3.12 pdf2zh
Execute translation, files generated in current working directory:
pdf2zh document.pdf
Download pdf2zh-version-win64.zip from release page
Unzip and double-click pdf2zh.exe to run.
Python installed (3.10 <= version <= 3.12)
Install our package:
pip install pdf2zh

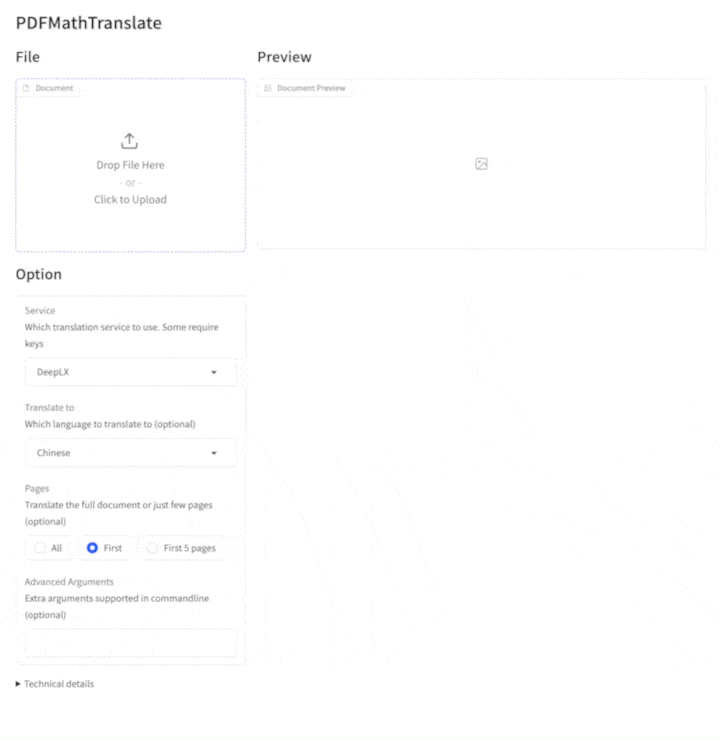

Start using in browser:
pdf2zh -i
If your browser has not been started automatically, goto
http://localhost:7860/
See documentation for GUI for more details.
Pull and run:
docker pull byaidu/pdf2zh docker run -d -p 7860:7860 byaidu/pdf2zh
Open in browser:
http://localhost:7860/
For docker deployment on cloud service:
See Zotero PDF2zh for more details.
Python installed (3.10 <= version <= 3.12)
Install our package:
pip install pdf2zh
Execute translation, files generated in current working directory:
pdf2zh document.pdf
[!TIP]
If you're using Windows and cannot open the file after downloading, please install vc_redist.x64.exe and try again.
If you cannot access Docker Hub, please try the image on GitHub Container Registry.
docker pull ghcr.io/byaidu/pdfmathtranslate docker run -d -p 7860:7860 ghcr.io/byaidu/pdfmathtranslate
The present program needs an AI model(wybxc/DocLayout-YOLO-DocStructBench-onnx) before working and some users are not able to download due to network issues. If you have a problem with downloading this model, we provide a workaround using the following environment variable:
set HF_ENDPOINT=https://hf-mirror.com
For PowerShell user:
$env:HF_ENDPOINT = https://hf-mirror.com
If the solution does not work to you / you encountered other issues, please refer to frequently asked questions.

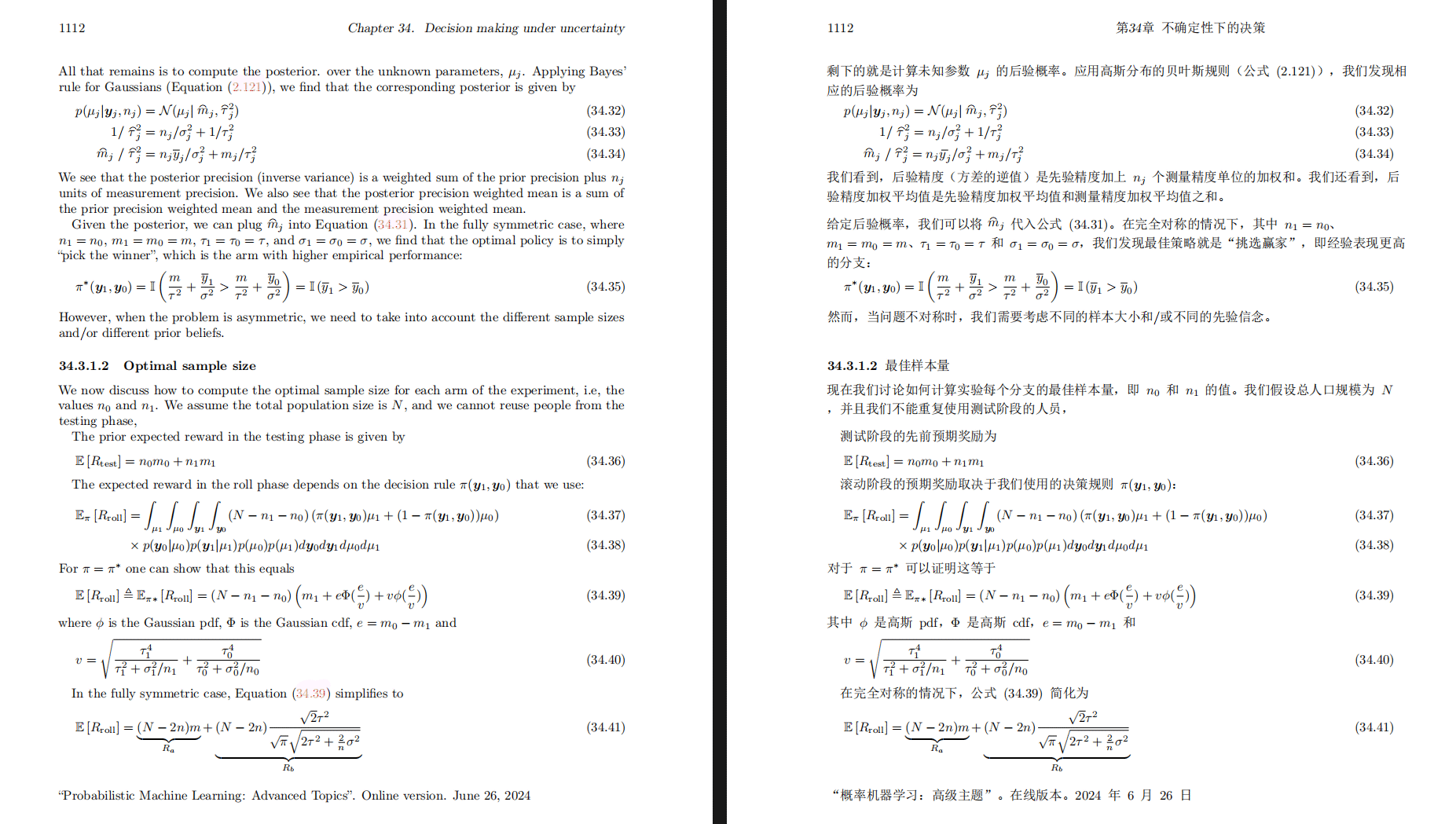

Execute the translation command in the command line to generate the translated document example-mono.pdf and the bilingual document example-dual.pdf in the current working directory. Use Google as the default translation service. More support translation services can find HERE.

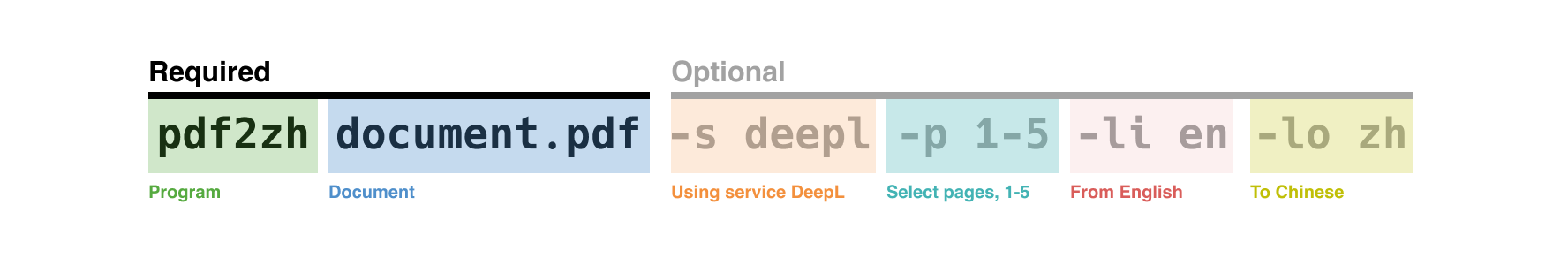

In the following table, we list all advanced options for reference:
| Option | Function | Example |
|---|---|---|
| files | Local files | pdf2zh ~/local.pdf |
| links | Online files | pdf2zh http://arxiv.org/paper.pdf |
-i | Enter GUI | pdf2zh -i |
-p | Partial document translation | pdf2zh example.pdf -p 1 |
-li | Source language | pdf2zh example.pdf -li en |
-lo | Target language | pdf2zh example.pdf -lo zh |
-s | Translation service | pdf2zh example.pdf -s deepl |
-t | Multi-threads | pdf2zh example.pdf -t 1 |
-o | Output dir | pdf2zh example.pdf -o output |
-f, -c | Exceptions | pdf2zh example.pdf -f "(MS.*)" |
-cp | Compatibility Mode | pdf2zh example.pdf --compatible |
--skip-subset-fonts | Skip font subset | pdf2zh example.pdf --skip-subset-fonts |
--ignore-cache | Ignore translate cache | pdf2zh example.pdf --ignore-cache |
--share | Public link | pdf2zh -i --share |
--authorized | Authorization | pdf2zh -i --authorized users.txt [auth.html] |
--prompt | Custom Prompt | pdf2zh --prompt [prompt.txt] |
--onnx | [Use Custom DocLayout-YOLO ONNX model] | pdf2zh --onnx [onnx/model/path] |
--serverport | [Use Custom WebUI port] | pdf2zh --serverport 7860 |
--dir | [batch translate] | pdf2zh --dir /path/to/translate/ |
--config | configuration file | pdf2zh --config /path/to/config/config.json |
--serverport | [custom gradio server port] | pdf2zh --serverport 7860 |
--babeldoc | Use Experimental backend BabelDOC to translate | pdf2zh --babeldoc -s openai example.pdf |
--mcp | Enable MCP STDIO mode | pdf2zh --mcp |
--sse | Enable MCP SSE mode | pdf2zh --mcp --sse |
For detailed explanations, please refer to our document about Advanced Usage for a full list of each option.
For downstream applications, please refer to our document about API Details for further information about:
Parse layout with DocLayNet based models, PaddleX, PaperMage, SAM2
Fix page rotation, table of contents, format of lists
Fix pixel formula in old papers
Async retry except KeyboardInterrupt
Knuth–Plass algorithm for western languages
Support non-PDF/A files
Immersive Translation sponsors monthly Pro membership redemption codes for active contributors to this project, see details at: CONTRIBUTOR_REWARD.md
New backend: BabelDOC
Document merging: PyMuPDF
Document parsing: Pdfminer.six
Document extraction: MinerU
Document Preview: Gradio PDF
Multi-threaded translation: MathTranslate
Layout parsing: DocLayout-YOLO
Document standard: PDF Explained, PDF Cheat Sheets
Multilingual Font: Go Noto Universal
